MINING WIRE ROPE

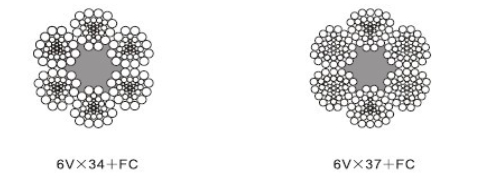

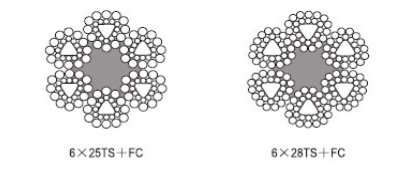

Linear contacted, compacted, multi-layers, full-lock coil, triangular wire rope, and flat wire rope used in hoisting for erect well, balance for erect well, bearing for both kettle way and erect well, and inclined hoisting for inclined well etc.


Nominal diameter mm	Approx Weight kg/100m		Tensile Strength Mpa
	Approx Weight kg/100m		1570	1670	1770	1870
	Natural Fiber core	Synthetic Steel core	Min. breaking load kN
24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60	249 293 339 390 443 501 561 625 693 764 838 916 998 1080 1170 1260 1360 1460 1560	245 287 333 383 435 491 551 614 680 750 823 899 979 1060 1150 1240 1330 1430 1530	339 398 462 530 603 681 763 850 942 1040 1140 1250 1360 1470 1590 1720 1850 1980 2120	361 423 491 564 641 724 812 904 1000 1100 1210 1330 1440 1570 1690 1830 1960 2110 2250	382 449 520 597 680 767 860 958 1060 1170 1290 1400 1530 1660 1790 1940 2080 2230 2390	404 474 550 631 718 811 909 1010 1120 1240 1360 1480 1620 1750 1900 2040 2200
Note：The total Min breaking load=Min breaking load ×1.177


Nominal diameter mm	ApproxWeight kg/100m		TensileStrength Mpa
	ApproxWeight kg/100m		1570	1670	1770	1870
	Natural Fiber core	Synthetic Steel core	Min. breaking load kN
22 24 26 28 30 32 34 36 38 40 42	196 233 274 318 364 415 468 525 585 648 714	192 229 268 311 357 407 459 515 573 635 700	246 293 344 399 458 521 588 659 735 814 897	262 312 366 424 487 554 625 701 781 866 954	278 330 388 450 516 587 663 743 828 918 1010	293 349 410 475 545 620 700 785 875 969 1070
Note：The total Min breaking load=Min breaking load ×1.177


Nominal diameter mm	ApproxWeight kg/100m		TensileStrength Mpa
	ApproxWeight kg/100m		1570	1670	1770	1870
	Natural Fiber core	Synthetic Steel core	Min. breaking load kN
22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58	196 233 274 318 364 415 468 525 585 648 714 784 857 933 1010 1100 1180 1270 1360	192 229 268 311 357 407 459 515 573 635 700 769 840 915 993 1070 1160 1240 1340	274 326 382 443 509 579 653 732 816 904 997 1090 1200 1300 1410 1530 1650 1770 1900	291 346 406 471 541 616 695 779 868 962 1060 1160 1270 1390 1500 1630 1750 1890 2020	308 367 431 500 573 652 737 826 920 1020 1120 1230 1350 1470 1590 1720 1860 2000 2140	326 388 455 528 606 689 778 872 972 1080 1190 1300 1420 1550 1680 1820 1960 2110 2260
Note：The total Min breaking load=Min breaking load ×1.177

One lay Z shaped wire	Nominal diamter mm	Approx Weight kg/100m	Min.BreakingLoad MPa
			1180	1270	1370	1470	1570
			Min.Breaking Load kN
	16 18 20 22 24 26 28 30 32 34 36 38 40 42	144 182 224 272 323 379 440 505 574 649 727 810 898 990	175 221 273 330 393 461 535 614 698 788 884 985 1091 1203	188 238 294 355 423 496 576 661 752 849 951 1060 1174 1295	203 257 317 383 456 535 621 713 811 915 1026 1143 1267 1397	218 275 340 411 489 574 666 765 870 982 1101 1227 1359 1499	232 294 363 439 523 613 711 817 929 1049 1176 1310 1452 1601
Two lay Z shaped wire	24 26 28 30 32 34 36 38 40 42 44 46 48 50 52	328 385 447 513 584 659 739 823 912 1005 1104 1206 1313 1425 1541	404 475 550 632 719 812 910 1014 1123 1239 1359 1486 1618 1755 1898	435 511 592 680 774 874 979 1091 1209 1333 1463 1599 1741 1889 2043	470 551 639 734 835 942 1056 1177 1304 1438 1578 1725 1878 2038 2204	504 591 686 787 896 1011 1134 1263 1399 1543 1693 1851 2015 2187 2365	538 631 732 841 957 1080 1211 1349 1495 1648 1809 1977 2152 2335 2526
Note:The total Min breakingload=Min breaking load X0.87

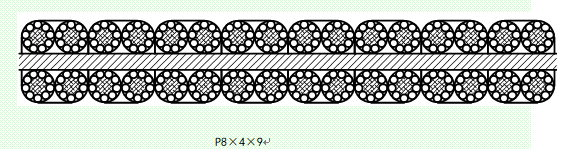

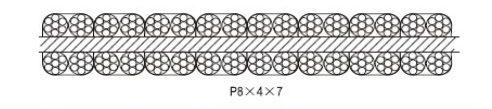

Nominal sizewidth × thickness	Size of steel wire of strand	Total cross section of steel wire mm²	Approxweight of fiatten wire rope kg/100m	NominalStrength MPa			Weave method
				1370	1470	1570
				TotalMin.Breaking Load of steel wire kN
mm				TotalMin.Breaking Load of steel wire kN
88×15	1.50	396	370	543	582	622	4 latitudewire ropes each side
94×16	1.60	450	420	616	662	706
100×17	1.70	508	470	696	747	798
107×18	1.80	570	530	781	838	895
113×19	1.90	635	580	870	933	997
119×20	2.00	703	650	963	1030	1100


Nominal sizewidt × thickness	Size of steel wire of strand	Total cross section of steel wire mm²	Approxweight of fiatten wire rope kg/100m	NominalStrength MPa			Weave method
				1370	1470	1570
				TotalMin.Breaking Load of steel wire kN
mm				TotalMin.Breaking Load of steel wire kN
132×21	1.70	653	700	895	960	1030	4 latitudewire ropes each side
139×23	1.80	732	770	1000	1080	1150
143×24	1.85	774	800	1060	1140	1220
147×24	1.90	816	840	1120	1200	1280
155×26	2.00	904	940	1240	1330	1420
163×27	2.10	997	1050	1370	1470	1570
170×28	2.20	1090	1160	1490	1600	1710
